1.Parameter of 120W led street light fixture
| Parameter | Description |
| Model | LD-B120A |
| Power | 120W |
| Input Voltage | AC100~277V 50/60Hz |
| Light Efficiency | >105LM/W |
| Power Factor | >0.98 |
| Total harmonic index | <10% |
| Flux | 12600LM |
| LED lifetime | >50000H |
| Operation temperature | -30℃~+50℃, |
| Color Temperature | Warm light/Day light/Pure light/ Cold light |
| Driver | HLG Meanwell Driver |
| Beam Color | Typical 5500K |
| Color Rendering Index | Typical 75 |
2. Pictures of 120W led street light fixture
3.Features of 120W led street light fixture
- Light source: Cree LED
- Low power consumption
- High luminosity and long life time
- Environmentally friendly
- Excellent opto-electronic performance
- High-efficiency cooling system
- Meanwell Driver, PF>0.98
- 3 years warranty time, 80,000 hours lifetime
4.Advantages of Led street light Fixture
Energy saving about 70%
Long life span more than 50000 hours
modern shape,BBT patented heat dissipation system
High efficiency constant current drive system with heat protection
system , can work
under unstable voltage
Super brightness 105lumen/w
5.Led Street Light Fixture Series
Product Code | LD-B80A | LD-B100A | LD-B120A | LD-B150A |
Wattage(W) | 80 | 100 | 120 | 150 |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Luminous Output | 8400 | 10500 | 12600 | 15750 |
Lumens Per Watt | 105Lm/W | 105Lm/W | 105Lm/W | 105Lm/W |
Life span | 50000 | 50000 | 50000 | 50000 |
Colour Temp | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
CRI | >75 | >75 | >75 | >75 |
Input Voltage | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz | 100-277V 50Hz/60Hz |
Working Temp | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |

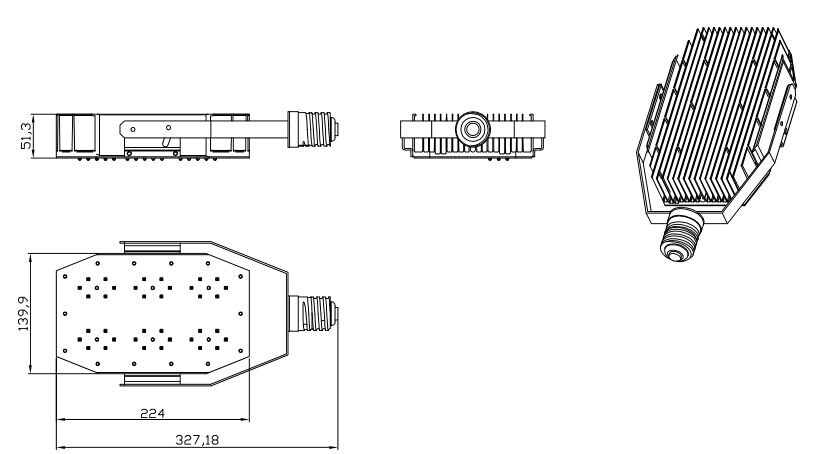

6.Size of led street light fixture
7.Dimension of Led street light
8.Impression drawing of Led street light
It can replace 250W metal lights
9.Shipment of Street light fixtures
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time
is about 3-5
days
2. Air Freight: when your order more than 100kgs which will be more
economical tha
n express
3. Sea Freight: we will update sea freight once we know your sea
port where goods
will be delivered
4. Agent designated by client: please tell us the contact detail of
your shipping agent
and we will arrange to deliver the items
If you want to know the shipping cost, pls tell us your address and
quantity.
