Recessed LED Lighting
1.Features of 20w Recessed LED Lighting
- Led downlight Save ≥ 50% energy comparing to traditional lights.
- Light output averagely which reaches the best lighting effect and
have no dark areas.
- Easy installation,labor saving.
- With or without remote controller is optional
- Various color:Warm white, Cool white,Blue, Yellow,Orange,Pink. and
RGB
- Zero maintenance, save maintenance cost.
- Easy transport and installation due to a low weight
- High luminosity and lower power consumption
- Alternative for 1 x 26 W or 2 x 26 W CFL Led downlight (direct
replacement)
- Shallow mounting depth
- Simple installation using the classic side holes in the shelves
- Variable installation possibilities for BBT led Down light
- Emits less heat than classic halogen luminaires
2.Specification of 20w Recessed LED Lighting
Parameter | Description |
Model | TD-A020A |
Power | 20W |
Input Voltage | AC100~277V 50/60Hz |
Light Efficiency | >95LM/W |
Power Factor | >0.96 |
Total harmonic index | >20% |
Flux | 1900LM |
LED lifetime | >50000H |
Operation temperature | -30℃~+50℃ |
Color Temperature | Warm light/Day light/Pure light/ Cold light |
Beam Color | Typical 6000K |
Color Rendering Index | Typical 75 |
Housing | Aluminum |
Cut Size | 125mm |
Material | Aluminum |
Light Size | 150*55mm |
Package | 8 pcs in one carton |

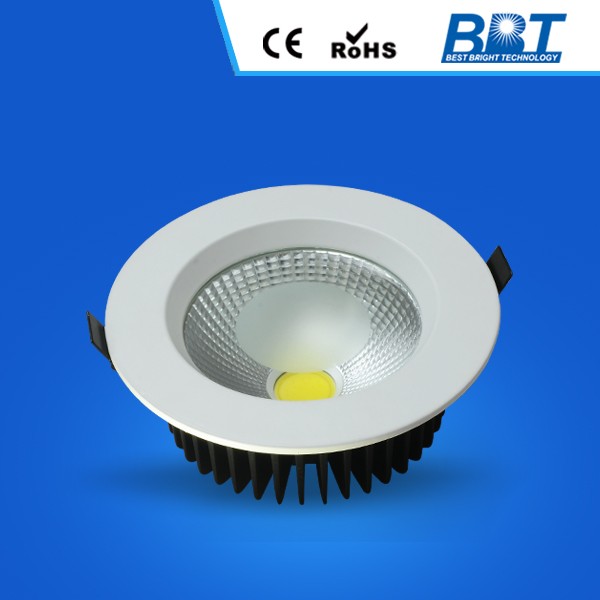

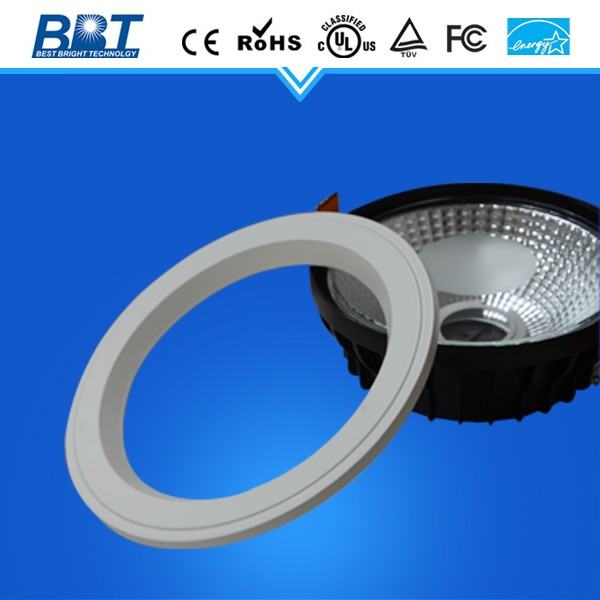

3.Pictures of 20w Recessed LED Lighting
4. Series of Recessed LED Lighting
| Model | CUT SIZE | Power | Lumens | Light source | warranty | lifetime |
| TD-A010A | 125mm | 10W | 1000LM | Epistar COB | 3 years | 50000h |
| TD-A015A | 155mm | 15W | 1500LM | Epistar COB | 3 years | 50000h |
| TD-A020A | 170mm | 20W | 2000LM | Epistar COB | 3 years | 50000h |
| TD-A030A | 220mm | 30w | 3000LM | Epistar COB | 3 years | 50000h |
5.Installation of Recessed LED Lighting
●This product should be installed by trained electricians.
● Check integrality of the products when unpack the packing of led
down light.
●The distance between the light and any flammable materials must
not be less than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than
50px.The light must not be installed into ceilings or walls that
contain heat-insulating material.
●The main cable must not connect with the low voltage cable or the
surface-mounted lights.
●Guide the lights' connecting cables through the drilled-out
hole,and fix the surface-mounted lights with the pre-fitted clips.
Make
sure that these are securely connected to the base material.
● When laying the cables, make sure that the cables and plugs

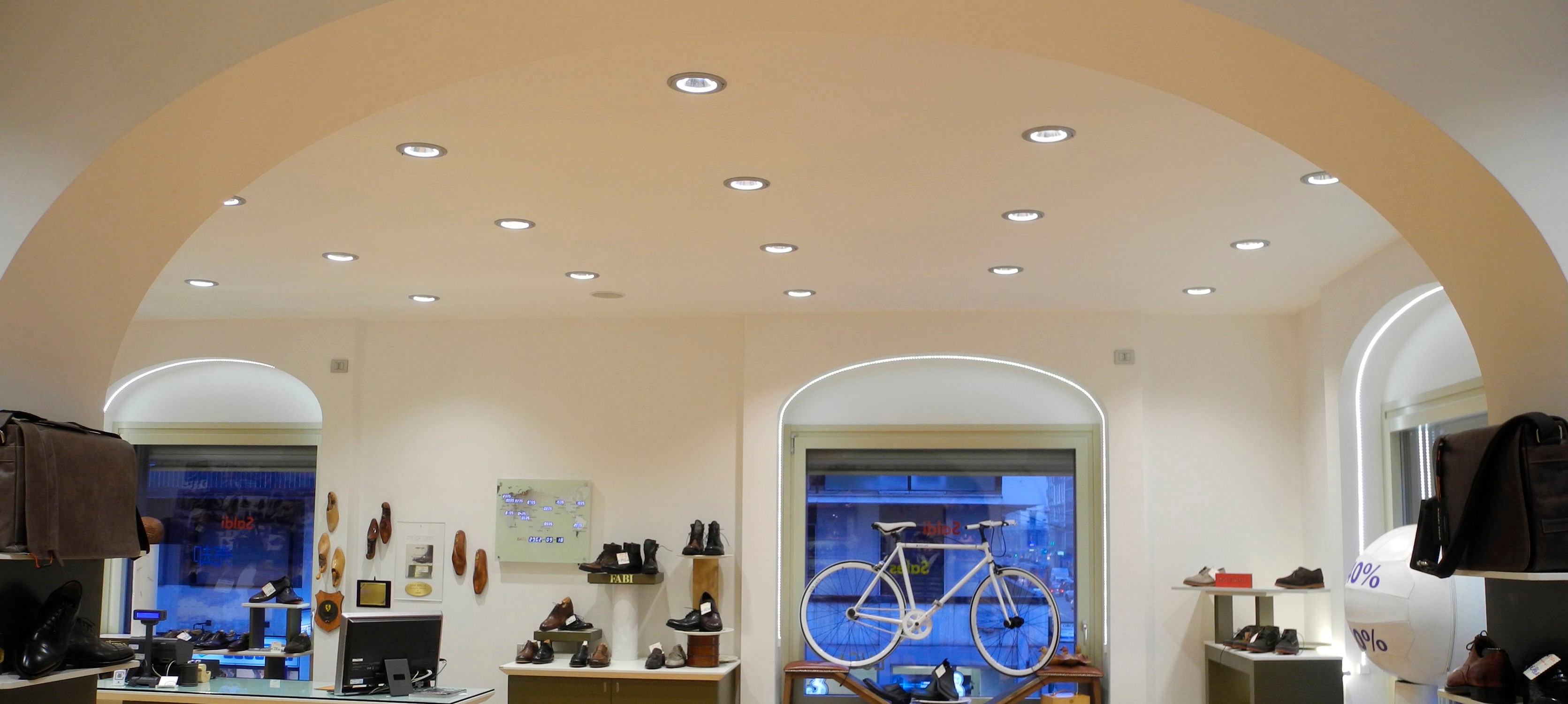

6. Application of Recessed LED Lighting
7.Why choose Recessed LED Lighting?
BBT lighting factory has focused on green led lighting application
for a few years, especially in the residential and commercial
lighting field. Our advantages are concluded as below:
1. )Fine Quality: Materials are carefully selected before production. Inspection is
done after every production line.
2.) Super Brightness: Good LED chips with high brightness are adopted. Brilliant driver
for long lifespan was used.
3.) Continuous Improvement: Our technicians continuously improve the LED lamps to meet the
market needs.
4.)Timely delivery: Usually, mass goods can be delivered in 15 days. If products are
needed urgently, we will try our best to make the delivery time
shorter.
5.) Superior Service: Your questions will be answered within 24 hours.
8.Shipments of Recessed LED Lighting
- By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time
is about 3-5 days.
- Air Freight: when your order more than 100kgs which will be more
economical than express.
- Sea Freight: we will update sea freight once we know your sea
port where goods will be delivered.
- Agent designated by client: please tell us the contact detail of
your shipping agent and we will arrange to deliver the items.
